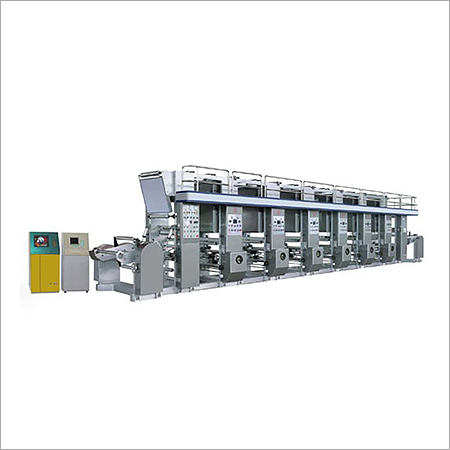

Computer Rorogravure Machine

Computer Rorogravure Machine
Computer Rorogravure Machine
Product Code : 17
Product Description

In a short span of time, we have become a trusted manufacturer, supplier and exporter of a wide ambit of Computer High-Speed Rorogravure Machine. This machine is ideal for BOPP, PET, CPP, PVCD , combined film and paper with the same properties. It has printing speed of 130m/min, while the mechanical speed is 150m/min. Our offered machines are broadly used for cutting bulk material into narrower rolls. Our range of Computer High-Speed Rorogravure Machine is best known for features such as high tensile strength, easy maintenance, abrasion & corrosion resistance and many more.

Model

TS-C800

TS-C1100

Web width

800mm

1100mm

Printing speed

max130m/min

max130m/min

Print cyl. dia.

Ф100-350mm

Ф100-350mm

Web diameter

Ф600mm

Ф600mm

Print cyl. Longitudinal adjustable

30mm

30mm

Registering accuracy

±0.1mm

±0.1mm

Total power

115kw

130kw

Weight

12000kg

13000kg

Overall dimensions(L×W×H)(mm)

14500×2800×3060

14500×3100×3060
