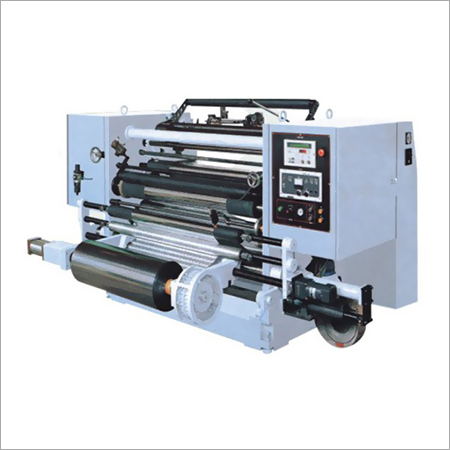

Automatic Slitting Machine

Automatic Slitting Machine
Automatic Slitting Machine
Product Code : 20
Product Description

We are counted among some of the most prominent manufacturers, suppliers and exporters of a wide gamut of High Speed Slitting Machine. Manufactured using highly advanced production techniques, our range of machine is applied to slitting BOPP, PET, CPP, PVC ALFOIL and paper in printing. Our offered machine is well fitted with PLC(four vector motor), and with man-machine interface and a touch screen in operation. Our range of High Speed Slitting Machine is widely acclaimed for their corrosion resistance, etc.

Main Features:

1.The complete machine is equipped with PLC(four vector motor), and with a touch screen and man-machine interface in operation.

2. The unwinding transmission belt is governed by a vector motor, and PLC can automatically calculate the unwinding roller diameter, which can achieve the unwinding tension control constantly.

3. The traction transmission adopts vector frequency inverter controlling the vector motor, constantly controlling at a linear speed.

4. The rewinding transmission adopts a vector motor, adjusted by vector frequency inverter and PLC can automatically calculate the rewinding roller diameter, which can achieve the rewinding tension control constantly.

5. The rewinding and unwinding device adopts shaft-free core(also called inflatable air shaft feeding), which is to feed through clipping closely by a thread rod, and the looseness and tightness adjustment is done electrically as well.

6. The edge-correction actuator is static with the movement routine ranging to 120mm.

7. It adopts the round and flat blades to slit.

  1. The system of the machine has the function of meter-counting, roll diameter operation and protecting the machine while it lack of material, achieving the slitting by setting the meters and roll diameter.

Main Technical Parameter :

Model

GFQ-C700-1600

Width of material

700-1600mm

Diameter of material

ф800mm

Diameter of paper core

ф76mm

Slitting speed

250m/min

Width of finished products

20-1600mm

Slitting precision

+-0.2mm

Weight

2-2.5T

Total power

12k-16w

Overall dimension(L×W×H)

1550x3000x1550mm
