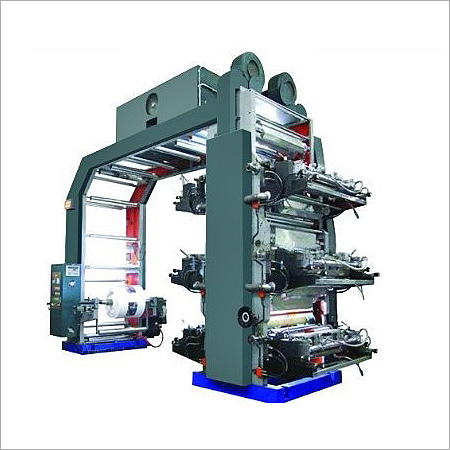

Automatic Flexographic Printing Machine

Automatic Flexographic Printing Machine
Automatic Flexographic Printing Machine
Product Code : YTB600
Product Description

Backed by a sound and robust infrastructural set up, we have become a pioneer manufacturer, supplier and exporter of a huge ambit of High Speed Flexographic Printing Machine 2000mm. Our offered printing machines possess precise design and fabricated using high quality basic components sourced from reliable vendors of the industry. Also these machines are in conjunction with a ll the set quality norms of the industry. Our range of High Speed Flexographic Printing Machine 2000mm is highly appreciated for attributes such as easy to operate, long functional life, superior work capacity and many more.

  Details:



model

YTB6600-2000mm

Width of printing meterial

600-2000mm

Width of printing

560-1960mm

Printing meterial

15-120gPVC:10~120μm

OPP:10~100μmBOPP:10~100μmPE:15~150μmNY:10~120μm

PET:10~100μmCPP:10~100μmPaper:15~400g/m2

color

6color

Length of printing

200-1100mm

Plated-glued roller adjusting

manualair shaftHydraulicas  your order

Speed of machine

10-100m/min

Printing speed

10-80m/min

overprint Precision(mm)

Horizontal:+-0.15mmVertical:+-0.2mm

unwinder

1、friction 2auto tension with magnetic powder3Magnetic powder manual tensionas your order

winder

1、friction 2auto tension with magnetic powder3Magnetic powder manual tension4Torque motoras your order

fed and unloated

Manual   or  air shaftas your order

Max rewind (unwind)diameter (mm)

600-1000mmAccording to different materials

Main motor

3.5-7.5Kw

Power of Heating

8-12Kw

Power of  Heating Blowers

1.5-3Kw

Power of  Cooling Blowers

0.75-1.5Kw

 Ink transfer motor

750W

The inverter

3.5-7.5Kw

Metal  Anilox Roller

30-300 LPIAccording to different design and printing

Ceramics Anilox Roller

50-1000 LPIAccording to different design and printing

Squeegee

Generalor Closedas  your order

Unwinder Magnetic

2.5-20Kg

Rewinder Magnetic

orTorque Motor

5-20kg

20N./m-80N./m

Tension test

2~30Kg

Unwinder an rewinder adjusting

80-140# 1、Photoelectric2air shaft3Hydraulic

as  your order

Total Power



23-55Kw

Net weight

4000-7000Kg

Overall Dimension



4.8×1.6-3×2.7m
